Valve and Actuator
In Honeywell’s field device portfolio, we have a comprehensive range of valves and actuators, widely used in various types of smart building HVAC systems. This includes control valves, hydraulic balancing valves, direct coupled actuators, as well as categories like damper actuators and electric valves for fan coil units.
Linear Valve & Actuator
V5011B2/3W Series
Honeywell V5011B2/3W series threaded linear valves can work with ML88/ML74/ML64 series linear actuators to control the water flow of central air conditioning system and district heating system.
V5011B2W is a two-way linear valve. V5011B3W is a three-way mixing flow linear valve. Size: DN15~DN50. Pressure Rating: PN16. Connection : Thread ISO7-1.
Applications: commercial building, office buildings, data centers, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
V5GV2/3W Series
Honeywell V5GV2/3W series globe valves work with ML8824 series motorized linear actuators to control water flow. V5GV2/3W can be used in a wide range of applications, such as air handling systems.
V5GV2W is a two-way linear valve. V5GV3W is a three-way mixing flow linear valve. Size: V5GV2W DN15~DN150/V5GV3W DN50~DN150. Pressure Rating: PN16. Connection: Flanged connection ISO 7005-2.
Applications: commercial building, office buildings, data centers, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
VH58 Series
Honeywell VH58 series globe valves work with ML35/ML25 series motorized linear actuators to control water flow. Honeywell VH58 can be used in a wide range of applications, such as air handling systems.
Honeywell VH58 series provide two-way, three-way mixing/diverting flow linear valve. Size: two-way DN40~DN250/ three-way DN65~DN250. Pressure Rating: PN16. Connection: Flanged connection ISO 7005-2.
Applications: commercial building, office buildings, data centers, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
Butterfly Valve & Actuator
V9BF Series
Honeywell V9BF series butterfly valves and NOM..H electric actuators, with modulating control or two-position control, can be applied to water supply and HVAC systems. The modulating actuators work with a variety of control signals, i.e. 4–20 mA, 0–10 V or 2–10 V (on-site set-up available). Size: DN50~DN800. Pressure Rating: PN16. Connection : Wafer/Flanged/Lug
Applications: commercial building, office buildings, data centers, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
V8BF Series
Honeywell V9BF series butterfly valves and NOM-E electric actuators, with modulating control or two-position control, can be applied to water supply and HVAC systems. The modulating actuators work with a variety of control signals, i.e. 4–20 mA, 1–5 V or 2–10 V (on-site set-up available). Size: DN50~DN800. Pressure Rating: PN16/PN25. Connection : Wafer/Lug
Applications: commercial building, office buildings, data centers, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
Direct Coupled Actuator
CN Series
Honeywell CN series direct-coupled damper actuators provide modulating control and floating/2-position control for: air dampers, VAV units, air handling units, ventilation flaps, louvers. It can provide reliable control for air damper applications with up to 5 Nm/10 Nm/20Nm/34Nm.
Applications: commercial building, office buildings, government facilities, hospital, transportation, hospitality etc.
Available regions: all regions
CS Series
CS41XX, CS75XX, CS81XX Spring Return Direct Coupled Actuators (DCA) are used within heating, ventilating, and air-conditioning (HVAC) systems. They can drive a variety of quarter-turn, final control elements requiring spring return failsafe operation. It can provide reliable control for air damper applications with up to 5 Nm/10 Nm/20Nm.
Applications: commercial building, office buildings, government facilities, hospital, transportation, hospitality etc.
Available regions: all regions
Ball Valve
VBA16P-Series
Honeywell VBA16P-series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control. Size: DN20~DN80. Pressure Rating: PN16. Connection : Thread BSPP.
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
VBA16F-Series
Honeywell VBA16F-series of two-way control ball valves can be used in the HVAC water systems of commercial and public buildings to achieve modulating or On/Off control. Size: DN65~DN150. Pressure Rating: PN16. Connection : Flanged connection ISO 7005-2.
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
MVN-Series Ball Valve Actuator
Honeywell MVN-Series Ball Valve Actuator is designed to be used with VBA16P and VBA16F Series Ball Valves. Mounting bracket is included and pre-installed for easy field installation.
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
Balancing Valve

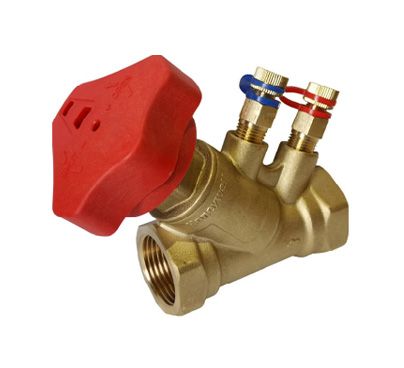

VHS Series
Honeywell VHS Series Static Balancing Valves, through operation of a hand wheel, allow setting of Kv value which corresponds to a preset flow rate. By applying the VHS Series Static Balancing Valves in HVAC system, upon commissioning procedures, maximum flow rate will be accurately set to the water pipelines to achieve static balancing and avoid over or under flow, as such comfortability and energy saving of the system can be enhanced. Honeywell VHS Series Static Balancing Valves can be installed in main branch pipes or terminal branch pipes of HVAC systems or other hydraulic systems requiring the features. Size: DN15~DN50. Pressure Rating: PN16. Connection : Threaded (ISO7-1) .
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions

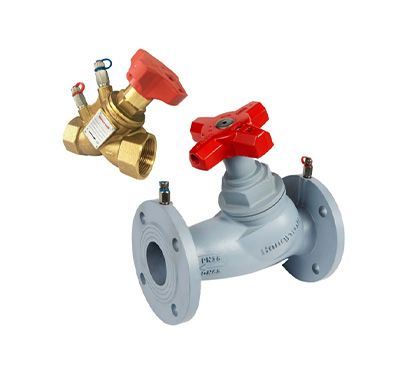

VSHB Series
Honeywell VSHB Series Static Balancing Valve can preset the flow rate accurately by rotating handwheel and working with suitable commissioning meter. Static balancing valves can achieve static hydraulic balancing of pipe system of HVAC by presetting the maximum flow rate, remove overflow and underflow of pipes. They are typical installed in the standpipes, branch pipes and pipes of terminal equipment of HVAC system, also can be applied to other same or similar functional requirements. Size: PN16: DN50~DN500/PN 25: DN15~DN50, DN65-DN500. Connection : Threaded (ISO7-1)/ Flanges (ISO7005-2) .
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions

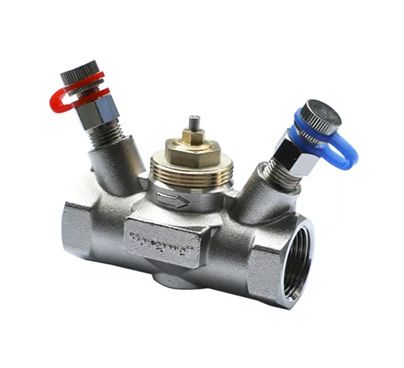

VMSB16R Series
Honeywell VMSB16R motorized static balancing valves can adjust the Max Kv value manually, are compatible with M400 series thermoelectric actuator, applied to control AHUs, radiators and small HAVC terminal equipment. VMSB16R series motorized static balance valves have two option for pressure ports: with and without pressure ports. The valve with pressure ports can be matched with static balance valve commissioning instrument to measure pipeline flow value. Size: DN15~DN25. Pressure Rating: PN16. Connection : Threaded.
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions

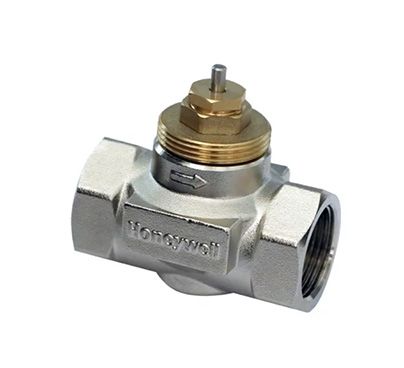

VTS16R Series
Honeywell VTS16R series motorized linear zone valves work with M400 series thermoelectric actuators.They are applied to control FCU and Radiators (District Heating System). The gradual closing of thermoelectric actuator can effectively prevent water hammer. Size: DN15~DN25. Pressure Rating: PN16. Connection : Threaded.
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
VAFC Series
Honeywell VAFC Series pressure independent control valve is mainly used in controlling small size air handling units, fresh air unit and fan coil unit. The product is built-in with an adjustable valve plug, a pressure independent kit and a maximum flow regulating assembly. The product has the three functions of on/off control, max flow setting and pressure independent balance. VAFC Series pressure independent control valve works with thermoelectric actuator M400 series to provide on/off control. The gradual closing of thermoelectric actuator can effectively prevent water hammer. Size: DN15~DN25. Pressure Rating: PN16 & PN25. Connection : Threaded (ISO7-1).
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
VPIC Series
Honeywell VPIC series PICV is mainly used to control air conditioning terminal equipment (AHU，FAU，MAU etc.) and other equipment need to be adjusted and balancing control. VPIC series of PICV has built-in linear valve plug and work with M or ML series electric actuator can achieve electric proportional integral adjustment and dynamic differential pressure balance control function. Size: DN15~DN250. Pressure Rating: PN16 & PN25. Connection : DN15~DN50 Threaded (BSPP)/DN50~DN250 Flange(ISO7005-2).
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
VDPC Series
Honeywell VDPC series of Dynamic Differential Pressure Control Valves have built-in dynamic differential pressure balancing. Subassembly is assembled by balancing plug, high performance membrane and spring. DPCVs apply to control the differential pressure between the inlet and outlet of a control valve or a branch pipe of air conditioning system in order to make the DP doesn't be impacted by central air conditioning system pressure changing and keep balancing, which can achieve valve or branch pipeline flow stability, improving the accuracy of valve regulation, eliminating the air conditioning terminal equipment temperature fluctuations and extending the service time of the control valve .Size: DN25~DN150. Pressure Rating: PN16. Connection : DN25~DN50 Threaded (BSPP)/DN65~DN150 Flange(ISO7005-2).
Applications: commercial building, office buildings, government facilities and high-end manufacturing, industrial and high-end manufacturing, hospital, transportation, hospitality etc.
Available regions: all regions
